AdiaBlock HBX


Applications:

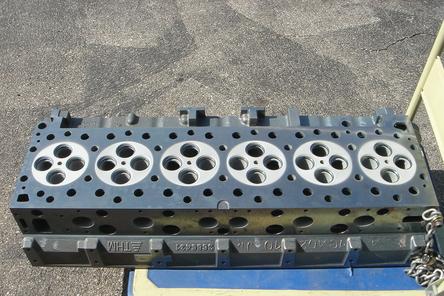

  • ​Cylinder Heads

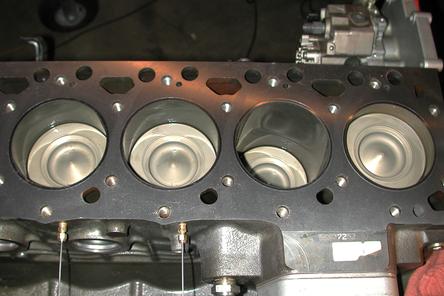

  • Pistons


Properties:

  • Microhardness Vickers DPH: 700 (100 gram load)
  • Porosity: Less than 8%
  • Thermal Conductivity (K): 1.1 (W/m-K) at Room Temperature
  • Thermal Conductivity (K): 1.3 (W/m-K) at 535°C
  • Maximum Use Temperature: 1,000 C
  • Coating Thickness: 0.05 - 0.25 mm
  • Bond Strength: > 6,000 PSI

TBCs are a type of Green Technology that is becoming increasingly popular within the automotive industry due to their effectiveness in reducing heat loss within an engine. This reduced heat loss allows engines to use less energy to maintain their desired temperature, thereby increasing fuel efficiency. We specialize in both developing and applying these types of coatings to engine parts. We have even developed a unique densification process that allows us to seal the porosity of the TBCs which decreases their rate of absorption, allowing our TBCs to outperform and outlast our competition.

We have developed our own line of TBCs, AdiaBlock, which possess low thermal conductivities and the ability to be applied at a thicker specification.

Thermal Barrier Coatings (TBC)

AdiaWear TiTan-Kote


Applications:

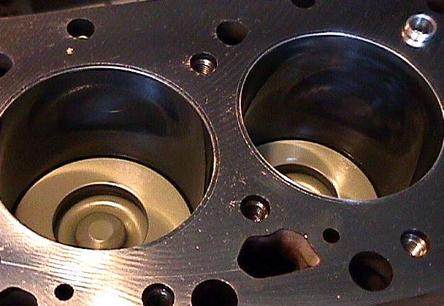

  • Cylinder Bores


Properties:

  • Application Method: Spraying
  • Cure Temperature: 430°C (806°F)
  • Thermal Conductivity: 27.0 (W/m-°K) @ Room Temp.
  • 2.0 (W/m-°K) @ 535°C
  • Specific Heat: 0.727 (W-s/gm-°K) at Room Temp.
  • Porosity: Less than 5% open
  • Coating Hardness: 850-900 Vickers at 100 gm Load
  • Bond Strength: > 6000 psi (by ASTM Epoxy Pull Test Method)
  • Maximum Use Temperature: 1000°C (1832°F)
  • Maximum Coating Thickness: < 0.5 mm
  • Density: 3.808 gm/ccm @ Room Temp.
  • Dry Friction Coefficient: < 0.14 at 540°C vs. Metco 505 Moly Spray
  • Lubricated Friction Coefficient: μ=0.035 vs. Itself.

Friction & Wear coatings are designed to extend the lives of desired engine parts by providing a permanent or semi-permanent lubrication to their surface. This lubrication allows parts to run more smoothly and wear at a much lower rate. We have spent years developing specialized friction & wear coatings that exhibit minimal friction coefficients and maximal wear resistance.


We have developed a line excellent friction & wear coatings, AdiaWear, along with a sealant, for engine applications:

AdiaWear Thermo-Seal


Properties:

  • Applicable on a Wide Variety of Substrates
  • Improves Coating Layer's Cohesive Bond Strength by 35% - 80%
  • Improves Coating Hardness by 50% - 80%
  • Maximum Use Temperature: 980 C
  • Quick, Low-Cost Application
  • Safer, as Coating Structure is Maintained by Metal Substrate
  • Variable (Low and High) Range of Thermal Conductivities
  • Good Corrosion Resistance to Liquids and Gases
  • Dramatically Reduces Open Surface Porosity
  • Excellent High and Low Temperature Friction Coefficients

Friction & Wear Coatings

We Make More Possible!


AdiaBlock LT-450


Applications:

  • Exhaust Manifolds
  • Pistons
  • Piston Rings
  • Valves

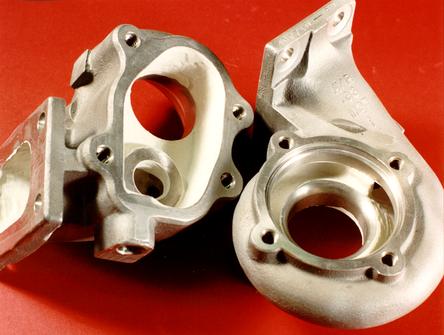

  • Turbochargers


Properties:

  • Application Method: Spraying, Brushing, or Dipping
  • Cure Temperature: 232°C (450°F)
  • Coating is Machinable
  • Thermal Conductivity: 0.993 W/m-K at 580°C
  • Specific Heat: 0.48 Ws/gm/°K at Room Temp.
  • Porosity: Less than 2% open
  • Coating Hardness: 1200 - 1400 Vickers at 100 gm Load
  • Cohesive Bond Strength: Greater Than Thermal Sprayed Coatings
  • Maximum Use Temperature: 649°C (1200°F)
  • Maximum Coating Thickness: 0.05 – 0.38 mm
